Home > Outside Plant Products > Splice Closures > Preformed Line >

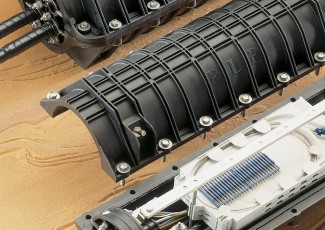

Closure splice 8.5x22 6 port endplate buffer tube

Item # 8006561

  • 8.5" x 22" (22 cm x 56 cm)
  • 6 Port end plate provides (4) 7/8" (22 mm) ports and (2) 3/4" (19 mm) ports
  • 4 Port end plate provides (2) 1-1/4" (32 mm) ports and (2) 1" (25 mm) ports
  • Splice Capacity: Up to 396 with single fusion, 576 with mass fusion
  • Configuration: Butt or In-line applications
  • Organizers designed for loose buffer tube and ribbon applications
  • Compact size allows for mounting in smaller locations
  • Provided with LOCK-TAPE Sealant System
  • Accepts a wide variety of grommets for multi drop applications
  • Field proven permanent neoprene gasket system
  • No re-entry kits required
  • Future cable ports provide capability for future cable installation, without end plate removal
  • Integrated air valve to confirm integrity of final assembly
  • UL Approved and RUS Listed
Price: FREE

    Quantity:
    The COYOTE® Closure is craft-friendly, affordable, reliable and durable, the COYOTE Closure ensures long-term reliability and quality of voice, video and data signals. Plus, it’s tested in accordance with Bellcore Testing Requirement GR-771-CORE. Its compact size disguises its storage capacity. At just 22" long, 6.0" and 8.5" in diameter, it can store up to 288 or 576 fiber splices respectively. After over ten years of field use and several hundred thousand units sold, the original COYOTE Closure still remains one of the most highly regarded and widely used fiber optic closures in the industry.
    • Sizes: 6.0" x 22" (15 cm x 56 cm) and 8.5" x 22" (22 cm x 56 cm)
    • 6 Port end plate provides (4) 7/8" (22 mm) ports and (2) 3/4" (19 mm) ports
    • 4 Port end plate provides (2) 1-1/4" (32 mm) ports and (2) 1" (25 mm) ports
