For Preformed Line Dome Closure.

A full line of mounting hardware is available for the COYOTE® Closure Series ranging from one of our smallest closures, the COYOTE® LCC, to our largest offering, the 9.5”x28” COYOTE® Dome Closure. Mounting solutions include aerial strand and ADSS mount, pole and wall mount, and underground applications including handhole and manhole mounting brackets. ...

The COYOTE® Closure is craft-friendly, affordable, reliable and durable, the COYOTE Closure ensures long-term reliability and quality of voice, video and data signals. Plus, it’s tested in accordance with Bellcore Testing Requirement GR-771-CORE. Its compact size disguises its storage capacity. At just 22" long, 6.0" and 8.5" in diameter, it can store up to 288 or 576 fiber splices respectively. After over ten years of field use and several hundred thousand units sold, the original COYOTE...

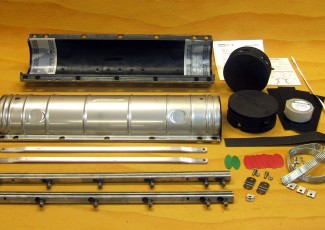

The ARMADILLO Stainless is our premium series splice case for the most demanding applications. It is designed to offer superior performance and versatility for virtually any application.

The ARMADILLO Stainless is our premium series splice case for the most demanding applications. It is designed to offer superior performance and versatility for virtually any application.

BLACK-JACK 50-Pair In-Line or Butt Splice incorporates both capabilities: In-Line or Butt Splice. Standard Package: 1 each.

Standard Package: 5 each.

RUS Listed, Capacity of 396 Single Fusion Splices. Buffer Tube: 8.5" x 22" COYOTE Closure, includes (1) 3 section end plate, (1) blank end plate, organizer, LOCK-TAPE sealant and (2) RUS listed shield connectors. Standard Package: 1 each.

Capacity of 216 Single Fusion Splices. Buffer Tube: RUS LISTED - 6" x 22" COYOTE Closure. Includes (1) 3 section end plate, (1) blank end plate, organizer, LOCK-TAPE sealant and (2) RUS listed shield connectors. Standard Package: 1 each.

For buffer tube applications capacity of single splices 216.  Standard Package: 1 each.

6.5" x 28" COYOTE Inline Dome for Buffer Tube Applications. (loose tube). Standard Package: 1 each.

For Flat and Small Drop Cable. Includes: 4-Port Sealing Grommets (flat drop and cable diameters .170"-.25"), 2-Single Fusion Splice Blocks, 1-Ribbon Splice Block and Cable Restraint Hardware. Dimensions: 9.1"x7.6"x1.7". Standard Cart0n: 8 each.

Kit for buffer tube (loose tube) applications. Includes:  one 3-section, 6-port end plate, one blank end plate and storage compartment. Dimensions: 17.0 in. L x 8.6 in. W x 7.2 in. H (43.2 cm x 21.9 cm x 18.4 cm).

Capacity of 72 Single Fusion Splices. RUS Listed COYOTE PUP Closure Kit for Buffer Tube – includes (1) 3 section 6 Port End Plate, (1) blank end plate, organizer and (2) RUS listed shield connectors. Standard Package: 1 each.

Compact size allows the closure to be installed into pedestals and small hand holes. Key Features • Size: 18.7" L x 10" W x 3.7" H • Max. Splice Capacity: (96) Single Fusion (80809958 Tray), (288) Ribbon/Mass Fusion (LGSTR144 Tray) • Configuration: In-Line or Butt/Expressed Splice • Port Quantity: 4 (2 each end) • Application: Direct buried, below grade, pole/wall mount or aerial • Internal organizer manages buffer tube or ribbon • Standard Kit provided with (4) 8003701 grommets, customized...

Dome Closure with Buffer Tube/Loose Tube Organizer. Capacity of single splices: 72, Standard Package: 1 each.

The COYOTE® RUNT Closure was specifically designed for fiber distribution networks. The small compact size of the COYOTE RUNT Closures make them an ideal fit for smaller hand holes and pedestals in the last fiber mile.

Dome closure with universal organizer for buffer tube up to 120 single fusion. Dimensions: 16"x10"x5.7". Standard Package: 1 each.

Includes universal organizer for ribbon or buffer tube up to 288 mass fusion or 120 single fusion. Dimensions: 16"x10"x5.7". Standard Package: 1 each.

Dimensions: 14.6" x 10.1" x 4.6") for up to 48 single fusion and 144 mass fusion splices. 3M

The COYOTE BGC (Bonding & Grounding Closure) is the latest addition to the COYOTE Fiber Optics product line for your Fiber to the Home, Node, or Curb deployments. The Closure’s compact size and versatile grommet system make this rugged closure the economical choice for your bonding and grounding applications in new or existing network designs. The COYOTE BGC represents the maximum versatility, reliability and technical support you’ve come to expect from PLP. ...

The COYOTE LCC’s compact size, use of the versatile grommet system and internal LITE-GRIP® Splice Platform are designed to make this rugged closure the economical choice for new installations and critical repair situations.

Ranger SERVISEAL® Closure 6 Pair Drop Provides long-term protection for buried service wire. Standard Package: 72 each.

Includes closure with organizer/storage compartment; OPGW Strain Relief Bracket ... organizer/storage compartment; all required supplies plus one. Standard Package: 1 each.

Buried Service Splice Kit for up to 12 Pair Drop Cable.  Standard Package:  36 each.

One Three-Section End Plate with two factory-installed ports (for future cable entry, for cables up to 0.8" [20] in diameter), four bonding/grounding inserts, four modified brackets for cable shield isolation/strength member tie-off, and protective collar assembly for cable blocking. Designed for two field-drilled cable holes.

1"(25) Future Cable Port Kit, includes: Future Cable Port, Plug and Clamp. For installation of Future Cable Port during initial assembly of end plate. Max. Cable is 1.0"(25) diameter.Standard Package:  1 each.
