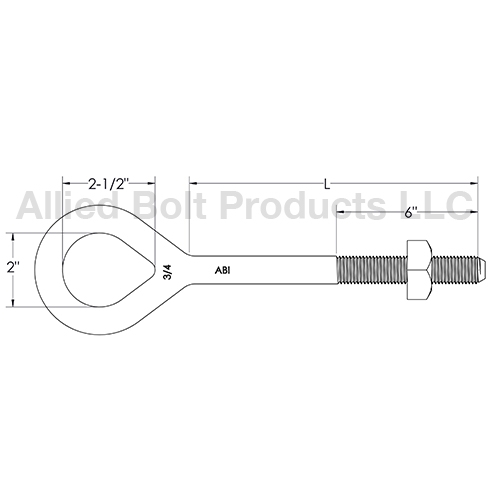

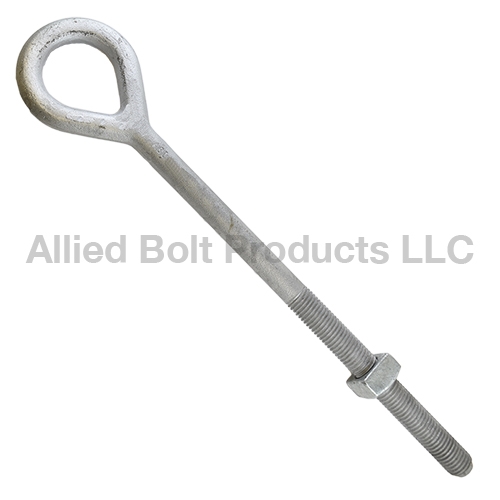

Bolt, Eyebolt, Ovaleye, Straight, 3/4" x 12", 25/Box

Item # 4114

  • Used for guying, dead-ending, and attaching clevises, suspension insulators and other poleline hardware.
  • Oval Eye Bolts have a forged eye, instead of welded, for high-strength.
  • Each Oval Eye Bolt is provided with a regular square nut.
  • Manufacture's mark (ABI) appears on unthreaded section of each bolt and is registered with the U.S. Patent Office per the Fastener Insignia Act.
  • All components are hot dip galvanized to meet ASTM Specification A153.
  • The minimum thread length is 6".
  • Recommended torque value: 130 ft lb.
  • Minimum tensile strength: 20,050 lbf.
Price: FREE
